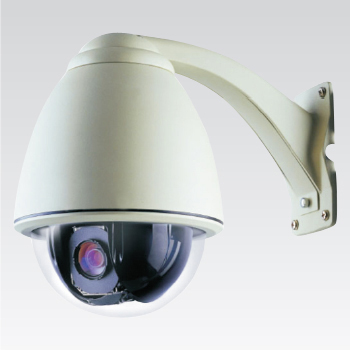

Indoor Suspended Intelligent Low Speed Dome Camera

Key Feature:
 * ABS material for outer cover and imported Acrylic out-cover and delicate design, black inner shell can monitor much sharper.
 * Be compatible with common cassette mechanism of camera, like SONY, HITACHI ,LG and other famous brands with high resolution.
 * Running smoothly with low speed, subwoofer noise and no image dithering
 * 64 preset positions.
 * 1 Patrol tracking routs and 1 auto level scan routs.
 * Variable rotation（pan 0 ～ 15º/s ;tilt 0 ～ 15º/s）;  Auto level scan
 * Continuous 360 º rotations in Omni-directions no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
 * RS485 integrated various protocols, PELCO-D, PELCO-P etc
 * 3 class lightning defend, built in 3000V lightning proof, surge resistant

Electrical specifications
Power Input	AC24V/2A (no identity "+" or "-")
Power Consumption	20W
Settings：
Decoder	Built-in
Preset Position	64 presets
Left&Right Rotation Range	360°Continuous Rotation
Left&Right Speed	0.1°－15°/S
Up&Down Rotation Range	90°Vertical, 180°Auto flip
Up&Down Speed	0.1°－15°/S
Control Method	RS485
Protocol	Pelco-P/D etc
Baud rate	2400bps/4800bps/9600bps/19200bps
Working environment：
Working Temperature	Indoor：0ºC ~ 50ºC
Physical：

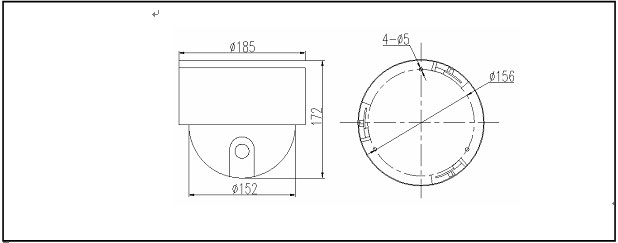

Packing Dimension(mm)	L260mm*W230mm*H260mm
Weight (kg)	Surface Mount: 2.6 Kg In-ceiling Mount: 3.44 Kg
