Key Feature:
* Monolayer aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
* Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
* Running smoothly with low speed, subwoofer noise and no image dithering
* 64 preset positions.
* 1 Patrol tracking routs and 1 auto level scan routs.
* Variable rotation（pan 0 ～ 15º/s ;tilt 0 ～ 15º/s）, auto level scan
* Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
* Auto flips with vertical 180 º in Omni-directions, no fade zone.
* RS485 integrated various protocols, PELCO-D, PELCO-P etc
* 3 class lightning defend, built in 3000V lightning proof, surge resistant
Specification:
| Electrical specifications |
| Power Input |
AC24V/2A(no identity "+"or "-") |
| Power Consumption |
20W |
| Settings: |
| Decoder |
Built-in |
| Preset Position |
64 presets |
| Left&Right Rotation Range |
360°Continuous Rotation |
| Left&Right Speed |
0.1°－15°/S |
| Up&Down Rotation Range |
90°Vertical, 180°Auto flip |
| Up&Down Speed |
0.1°－15°/S |
| Control Method |
RS485 |
| Protocol |
Pelco-P/D etc |
| Baud rate |
2400bps/4800bps/9600bps/19200bps |
| Working environment: |
| Working Temperature |
Indoor: 0ºC ~ 50ºC |
| Physical: |

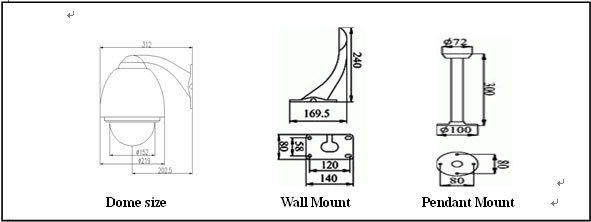

| Packing Dimension(mm) |
280mm*W280mm*H390mm |
| Weight (kg) |
Wall Mount: 4.5 kg Pendant Mount: 4.65 kg | |
