Ultra small high definition CCTV camera with excellent night vision.


Condition:New
Model:SPYMC900DA



Features & functions:
It's an ultra small  high definition CCTV camera with excellent night vision.
Size is 11.5X11.5X17mm only, Weight is 2g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.




Specification:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC 656 H 492 V PAL 786H 576V
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mmH3.55mmV
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2 1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 /55
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT 1/60 S TO 1/100000 S OUT 1/50 S TO 1/100000 S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm

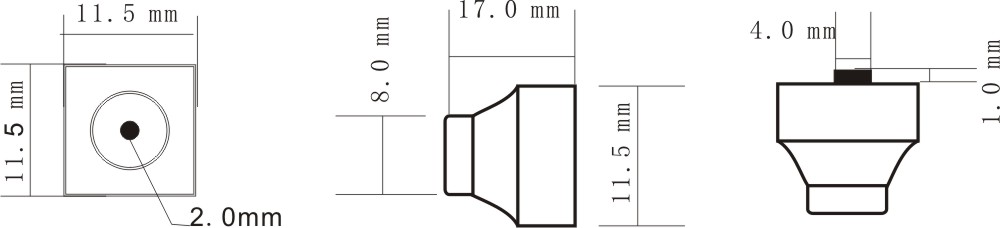

SIZE (L x W x H) 11.5mm x 11.5mmM x 17mm
WEIGHT 2g
WORK CURRENT 72mA
POWER REQUIREMENT DC 3.3V-6V
OPERATING TEMPERATURE - 10 C ~ +50 C less than 90% RH

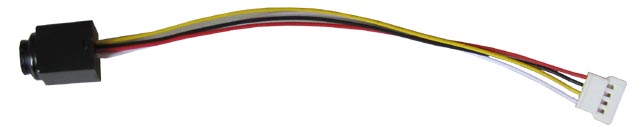

Connection PIN1-Red DC5V PIN2-Black GND PIN3-Yellow VIDEO OUT PIN4-white AUDIO OUT


Package:

* 1 Mini camera
* 1 AC Adapter

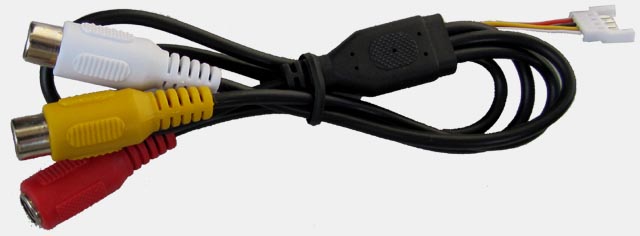

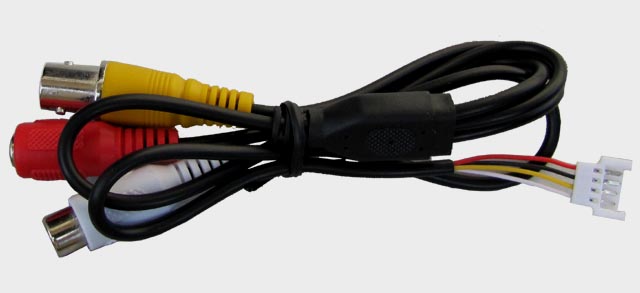

* 1 RCA/BNC cable (Only one cable, if no choice, we will ship at random)
